RA-1592 MK II Integrated Amplifier
-
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

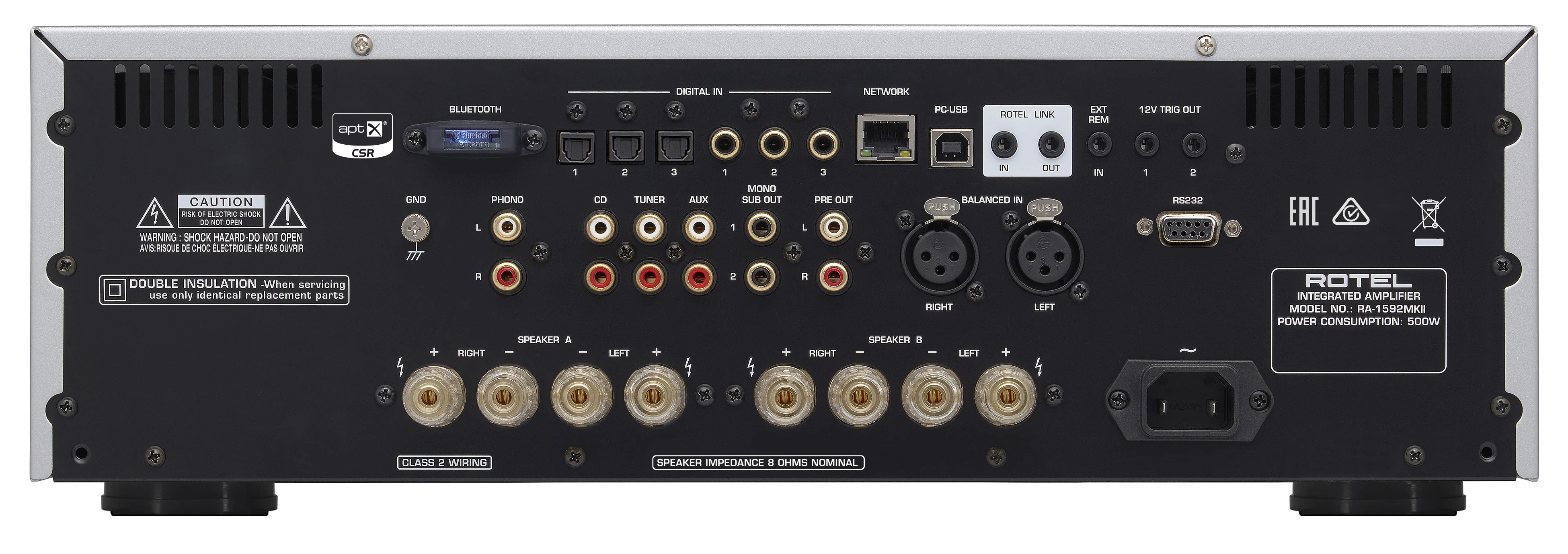

Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value - the RA-1592MKII delivers. -
CONTINUOUS POWER OUTPUT200W/Ch (All channels driven, 8Ω)TOTAL HARMONIC DISTORTION (THD)(20Hz–20kHz) < 0.008%FREQUENCY RESPONSELine Level Inputs: 10Hz - 100kHz ±0.5dBDigital Inputs: 10Hz - 90kHz ±2dBPhono Input: 20Hz - 20kHz ±0.5dBS/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dBDigital Inputs: 102dBPhono Input: 80dBDAMPING FACTOR600INPUT SENSITIVITYLine Level Inputs (RCA): 340mVLine Level Inputs (XLR): 540mVPhono Input (MM): 5.2mVINPUT IMPEDANCELine Level Inputs (RCA): 100kΩLine Level Inputs (XLR): 100kΩDigital Inputs: 75ΩPhono Input (MM): 47kΩINPUT OVERLOADLine Level Inputs (RCA): 3.5VLine Level Inputs (XLR): 5.5VPhono Input: 52mVPREOUT LEVEL1.9VOUTPUT IMPEDANCE100ΩTONE CONTROLS±12dB at 100Hz / 10kHzCOAX/OPTICAL DIGITAL INPUT SIGNALSLPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 1 (up to 24-bit /96 k Hz)
USB Audio Class 2 (up to 32-bit/384 k Hz)DSD and DoP support
MQA and MQA Studio (up to 24-bit / 384k Hz )DIMENSIONS (W × H × D)431 × 144 × 425mm
17" × 5.7" × 16"FRONT PANEL HEIGHT3U / 132.6mm (5.25")POWER REQUIREMENTS230V, 50HzPOWER CONSUMPTION500WSTANDBY POWER CONSUMPTION<0.5WNET WEIGHT17.63kg (37lbs.)BTU RATING1239 BTU/h
Original: $3,032.15
-70%$3,032.15
$909.64More Images
RA-1592 MK II Integrated Amplifier
-
Whether a seasoned audiophile or casual listener, the time has never been better to be a music lover. A near limitless supply of music is at our fingertips accessible via streaming, digital mediums, classic vinyl and more.
Rotel has been designing and manufacturing high fidelity, high quality, high performance audio products for over 60 years accurately rendering audio with exceptional detail and stunning clarity. The RA-1592MKII proudly continues in the tradition and heritage of this iconic brand.
The RA-1592MKII Integrated Amplifier includes circuit design innovations, optimisation of audio signal paths and updates to critical power supply components delivering a breathtaking performance with dynamic rhythm and timing.
Utilising Rotel’s best-in-class preamplifier topology and award-winning power amplifier technology, the RA-1592MKII is a no-compromise, size-efficient, all-in-one integrated audio product. The RA-1592MKII delivers 200 Watts per channel into 8 ohms powered by Rotel’s in-house manufactured toroidal transformer feeding an array of slit-foil capacitors for rich, deep, controlled, bass energy.
The RA-1592MKII supports your favourite sources including Analogue, XLR, Digital, aptX™ and AAC wireless Bluetooth, PC-USB supporting MQA and 32-bit/384kHz PCM, and Moving Magnet Phono stage. Digital to Analog conversion utilises a Texas Instruments premium DAC with precisely tuned output filter circuits delivering unprecedented acoustic detail, wide sound stage and exacting positioning.
The RA-1592KII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.
Selectable A-B speaker outputs, RS232, Ethernet and 12V triggers ensure seamless integration with control systems.
Convenience, performance and value - the RA-1592MKII delivers. -
CONTINUOUS POWER OUTPUT200W/Ch (All channels driven, 8Ω)TOTAL HARMONIC DISTORTION (THD)(20Hz–20kHz) < 0.008%FREQUENCY RESPONSELine Level Inputs: 10Hz - 100kHz ±0.5dBDigital Inputs: 10Hz - 90kHz ±2dBPhono Input: 20Hz - 20kHz ±0.5dBS/N RATIO (IHF "A" Weighted)
Line Level Inputs: 103dBDigital Inputs: 102dBPhono Input: 80dBDAMPING FACTOR600INPUT SENSITIVITYLine Level Inputs (RCA): 340mVLine Level Inputs (XLR): 540mVPhono Input (MM): 5.2mVINPUT IMPEDANCELine Level Inputs (RCA): 100kΩLine Level Inputs (XLR): 100kΩDigital Inputs: 75ΩPhono Input (MM): 47kΩINPUT OVERLOADLine Level Inputs (RCA): 3.5VLine Level Inputs (XLR): 5.5VPhono Input: 52mVPREOUT LEVEL1.9VOUTPUT IMPEDANCE100ΩTONE CONTROLS±12dB at 100Hz / 10kHzCOAX/OPTICAL DIGITAL INPUT SIGNALSLPCM (Up to 24-bit/192kHz)PC-USBUSB Audio Class 1 (up to 24-bit /96 k Hz)
USB Audio Class 2 (up to 32-bit/384 k Hz)DSD and DoP support
MQA and MQA Studio (up to 24-bit / 384k Hz )DIMENSIONS (W × H × D)431 × 144 × 425mm
17" × 5.7" × 16"FRONT PANEL HEIGHT3U / 132.6mm (5.25")POWER REQUIREMENTS230V, 50HzPOWER CONSUMPTION500WSTANDBY POWER CONSUMPTION<0.5WNET WEIGHT17.63kg (37lbs.)BTU RATING1239 BTU/h
